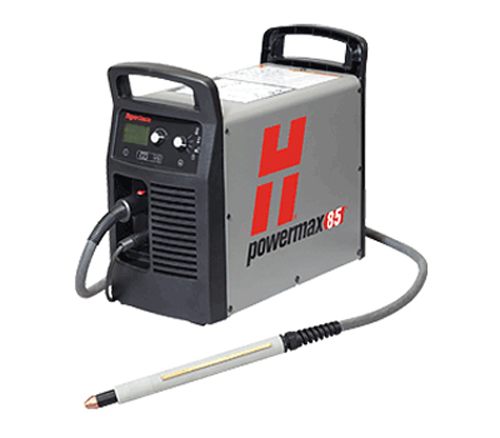

The Powermax85 combines the latest technological innovations and seven DuramaxT series torch options with 85 amps of cutting power to make it the premier air plasma system for handheld or mechanized cutting and gouging in its class.
| Engine Drive Rating (kW) | System Output (amps) | Performance (arc stretch) |
| 20 | 85 | Full |
| 15 | 70 | Limited |
| 15 | 60 | Full |
| 12 | 60 | Limited |
| 12 | 40 | Full |
| 8 | 40 | Limited |
| 8 | 30 | Full |
| Cut capacity | Handheld Cut | Cut speed |
| Recommended | 1" (25 mm) | 20 ipm (500 mm/min) |
| Severance | 1-1/2" (38 mm) | 5 ipm (125 mm/min.) |
| Pierce | 3/4" (20 mm) * |
Hand cutting
Gouging
Automated cutting
X-Y table
Track systems
Pipe systems
Robotic systems
| Material |
Current (amps) |
Metric unit | Imperial unit | ||
| tdickness (mm) |
Maximum
cut speed* (mm/min) |
tdickness (inches) |
Maximum
cut speed* (ipm) |
||
| Mild steel | 45 85 85 85 85 |
3 6 12 20 25 |
4900 4400 1600 680 450 |
10 GA 1/4 1/2 3/4 1 |
164 160 56 29 17 |
| Stainless steel | 85 85 85 85 |
6 8 12 20 |
4900 3050 1400 570 |
1/4 3/8 1/2 3/4 |
164 80 48 24 |
| Aluminum | 85 85 85 85 |
6 8 12 20 |
4900 3470 1930 880 |
1/4 3/8 1/2 3/4 |
172 104 68 37 |
| Input Voltages |
CSA CE |
200 – 480 V, 1-PH, 50/60 Hz 200 – 600 V, 3-PH, 50/60 Hz 400 V, 3-PH, 50/60 Hz |
| Input Current @12.2 kW | CSA CE |
200/208/240/480 V, 1-PH, 70/68/58/29 A 200/208/240/480/600 V, 3-PH, 42/40/35/18/17 A 380/400 V, 3-PH, 20.5/19.5 A |
| Output current | 25 - 85 A | |
| Rated output voltage | 143 VDC | |
| Duty cycle @ 40°C (104°F) | CSA CE |
60% @ 85 A, 230 – 600 V, 3-PH 60% @ 85 A, 480 V, 1-PH 50% @ 85 A, 240 V, 1-PH 50% @ 85 A, 200 – 208 V, 3-PH 40% @ 85 A, 200 – 208 V, 1-PH 100% @ 66 A, 230 – 600 V, 1/3-PH 60% @ 85 A, 380/400 V, 3-PH 100% @ 66 A, 380/400 V, 3-PH |
| Open circuit voltage (OCV) | CSA CE |
305 VDC 270 VDC |
| Dimensions witd handles | 500 mm (19.7") D; 234 mm (9.2") W; 455 mm (17.9") H |
|
| Weight witd 7.6 m ( 25') torch | CSA CE |
32 kg (71 lbs) 28 kg (62 lbs) |
| Gas Supply | Clean, dry, oil-free air or nitrogen | |
| Recommended gas inlet flow rate / pressure |
Cutting: 189 l/min (400 scfh, 6.7 scfm) @ 5.6 bar (85 psi) Gouging: 212 l/min (450 scfh, 7.5 scfm) @ 4.8 bar (70 psi) |
|
| Input power cable lengtd | 3 m (10') | |
| Power supply type | Inverter - IGBT | |
* Note: Maximum cut speeds are the results of Hypertherm's laboratory testing.
For optimum cut performance, actual cutting speeds may vary based on different cutting applications. Refer to the operator manual for more details.
