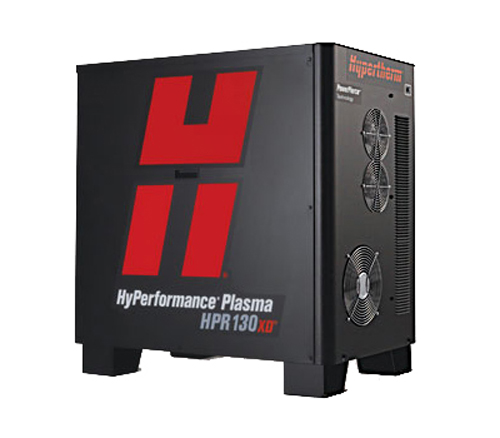

The HPR130XD delivers incomparable HyDefinition cut quality at half the operating costs, and is now available with new patent-pending True Hole technology.
Virtually dross-free cutting capacity - mild steel 16 mm (5/8")
Production pierce capacity - mild steel 32 mm (1 1/4")
Maximum cutting capacity (edge start) - mild steel 38 mm (1 1/2")
HyPerformance Plasma HPR130XD is a 130-amp system that delivers the virtually dross-free cut quality of HyDefinition, but does it with greater consistency, faster cut speeds, longer consumable life and half the operating cost.
| Capacity Mild steel | Dross free Production (pierce) Severence (edge starts) |
16 mm (5/8") 32 mm (1 1/4 ") 38 mm (1-1⁄2") |
| Stainless steel | Production (pierce) Severence (edge starts) |
20 mm (3/4") 25 mm (1") |
| Aluminum | Production (pierce) Severence (edge starts) |
20 mm (3/4") 25 mm (1") |
| Speed* (Mild steel) | Optimum quality | 12 mm (1/2") 2200 mm/m (80 ipm) |
| Cut angle | ISO 9013 range | 2-4 |
| Weldability | Ready to weld | |
| Process gases by material (Plasma/shield) |
Mild steel | 02/Air, 02/02, Ar/Air |
| Stainless steel | H35/N2, N2/N2, H35-N2/N2, F5/N2, Ar/Air, Ar/N2 |
|
| Aluminum | H35/N2, Air/Air, H35-N2/N2, Ar/Air, Ar/N2 |
|
| Process amps | Not all processes available for all materials | 30-130 |
* Note: Take care in comparison: competitors often show maximum cutting speeds rather than speeds that deliver the best cuts, as shown above. Cut speeds listed above deliver best cut quality, but cut speeds can be up to 50% faster.
