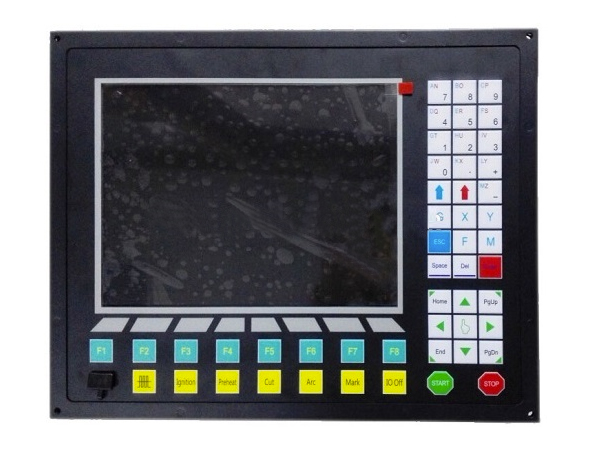

HYD2300 CNC Cutting Controller


  • 10.4 inches 800*600 dots color LCD.
    Man-Machine-Dialog software and Professional Hot Key design for easy cutting operation, user-friendly as Hypertherm's EDGE controller.
  • Multi-language file system and menu, and the menu can be switched only by one key.
  • DSP core can control the machine move in high speed accurately, stably and in low noise.
  • Long-distance remote control can control the machine to move forward ,backward, left, right and cutting start, stop and so on (optional configuration).
  • Support the EIA code (G code) and various FastCAM?FreeNest?SmartNest?IBE softwares.
  • Compact keyboard design and easy to input files.
  • Operations such as Proportion Zoom, Rotate, Mirror, Array display, Steel plate angle adjust...all available and have professional solution in the CNC controller.
  • Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds.
  • All input and output port type and the number can be customized (normally open or normally closed)
  • System Self-diagnosis for easy trouble-shooting.
  • All functions and techniques can upgrade online
  • Import and export files by single or all files.
  • Support the Flame, Plasma, Dusting draw and Demonstration four kinds of mode.
  • Flame and Plasma are separated in the control IO ports.
  • Support THC, two level preheat, three level pierce in flame mode.
  • Plasma arc feedback, positioning feedback, automatically shut down the arc at the corner.
  • Support edge cutting. It can save the preheat time for the thick steel plate.
  • Movement speed can be real-time acceleration, deceleration.
  • According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.
  • Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.
  • Automatically memorize the working situation and the last cutting point when power off.
  • "Cutting offset" function can avoid waste the steel plate when the nesting of the plate is calculated wrong.
  • Set up different administration authority and the corresponding password to safeguard the interests of managers.
